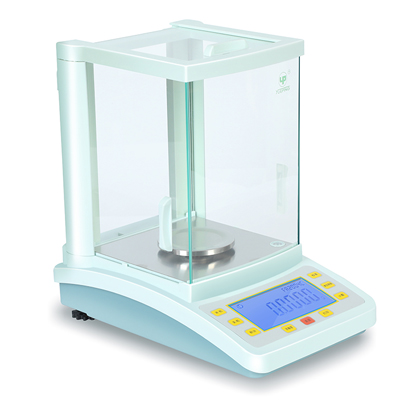

Product introduction: FA/JA-C series automatic internally calibrated electronic analytic balance is a new product for user's easy operation which is self-developed by our company on a basis of FA-B series product promoted.Advanced weight-loading mechanism is addedinside the balance,so taht the balance has function of antomatic built-in weight calibration;service performance and weighing precision are greatly improved.This product is pioneering in the field of domestic balance industry.
|
Feature:
● Humanized desogn,novel design and five-side full-transparent windshield.A new-generation electromagnetic balance weughting sensor guarantees high precision.Application programs such as sutpmatic fault detection,four-point linear calibration and over-load protection.
● The adoption of ultra-large digital intergrated printed circuit board guarantees high product precision.Th adoption of twin-cam mechanism realizes advantafeous funcation of automatic internal calibration which makes product faster and more stable.
● Application programs such as "warming","calibrating"and screen saver.
● Ultra-large backlight LCD display brings clearer and more comfortable visual senso to operator.
Function:
● Multip functions guaranteee easy and reliable operation,including auto-counting,unit conversion(metric carat,gole ounce,etc,),stablility,full-scale faring,zero-memory,etc
● Built-in automatic ablibration guarantees easier,faster,stable and accurate operation of the balance.
● Bilit-in RS232C output interface guarantees direct connection to external equipemnt such ascomputer and printer
● Built-in lower weighing hook guarantees convenient use.
Model | Weighing Range | Readable Precision | Scale Size | Net weight | Outline dimension | Out packing dimension | The height of working space | CAL |
---|---|---|---|---|---|---|---|---|
FA604C | 0-60g | 0.1mg | Φ90mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | Internal Calibration |
FA1004C | 0-100g | 0.1mg | Φ90mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | Internal Calibration |
FA1204C | 0-120g | 0.1mg | Φ90mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | Internal Calibration |
FA1604C | 0-160g | 0.1mg | Φ90mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | Internal Calibration |
FA2004C | 0-200g | 0.1mg | Φ90mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | Internal Calibration |
FA2204C | 0-220g | 0.1mg | Φ90mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | Internal Calibration |
JA1003C | 0-100g | 1mg | Φ90mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | Internal Calibration |
JA2003C | 0-200g | 1mg | Φ90mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | Internal Calibration |
JA3003C | 0-300g | 1mg | Φ90mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | Internal Calibration |
Configuration:
Balance body,scale,user manual,quality certification,warranty card,dust guard,cleaning cloth,tweezers and brush
